CUSTOMER

International Filter Manufa cturer Elkton, MD



APPLICATION

 Potting filter end c aps using a fast setting, plural component urethane.


CHALLENGE

 The project required Exa ct engineers to design and execute a large sc ale, fully integrated mobile platform on which a full meter/ mix system, including feed drums, could be mounted. Additionally, they were tasked with providing a removable work platform on which a Circular Bead Dispenser could be situated.


 SOLUTION

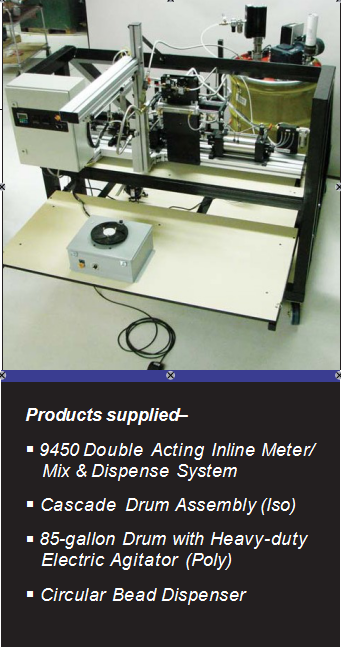

Exa ct Dispensing Systems designed and fabric ated a robust mobile platform upon which a Model 9450 Double Acting Inline Meter/ mix   and Dispense  System was  mounted. Additionally, a continuous flow Casc ade Drum  Assembly for the Isocyanate component was provided which a ccommodates a pair of 55 gallon drums sta cked on their sides. An 85 gallon drum for the Polyol component was provided which included a feed pump as well as a heavy duty electric agitator to keep fillers in suspension.

Sidewall mounted level sensors provide an audible and visual signal when A or B fluid levels rea ch a low level condition.
