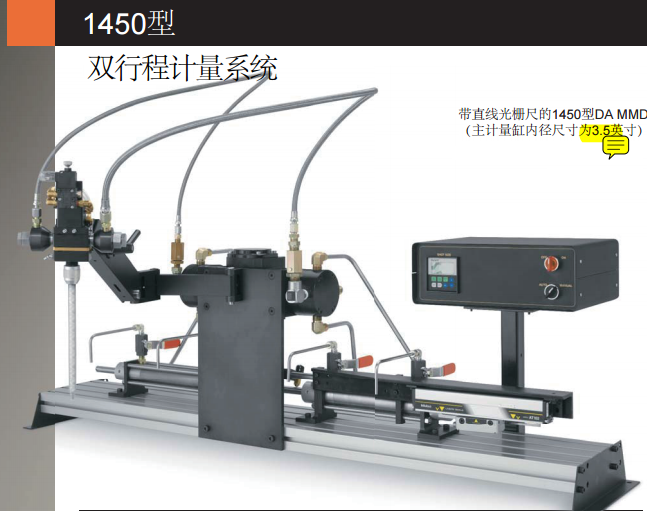

Used for batch or continuous injection applications for two-component epoxy, polyurethane, silicone and others Basic features: • The measurement cylinder has a wide range of internal diameters and application ratios to meet a wide range of production applications. • The positive displacement piston metering structure ensures the consistency of the A/B material, and the ratio is completely guaranteed by the cylinder bore size. • The integral directional valve avoids the lack of a floating check valve. • Two-stroke design allows for intermittent or continuous dispensing. • Stainless steel body, PTFE seals and nickel plated components ensure long-term excellent performance of the equipment, even in the face of abrasive materials. • A lot of glue can be shot on a single trip, which means extremely low sports wear. • Can be controlled manually or automatically. • The A/B glue is always isolated from each other before it enters the mixing tube. • Use disposable mixing tubes without solvent cleaning. • Can be connected to cans, 5 gal drums, 55 gal drums or other drums. 1450-DA Specifications: Main agent cylinder inner diameter: ........1.500 inch Travel distance: ..................................5 inches Full stroke volume (1:1 ratio): ...............8 f . oz. / 239 cc Board size: ........................................53 inches Substrate with scale: ..........................55 inches Optional items: • grating ruler- Suitable for applications requiring precise control of the glue volume, the position accuracy of the scale can be up to 0.0008” (0.0004 optional) • Pump components- For 5-gallon to 55-gallon packages, high-viscosity materials require a platen pump • Feed tank- Vacuum deaeration 5-60 gallon-Heated to 150 °F - Stirrer assembly - Nitrogen protection connecting assembly (moisture sensitive glue) - Level control • Heating pipe - up to 20 feet Other options: • system integration - Provide glue injection system communication port • Handling trolley- Satisfy your application needs and facilitate the long-distance transportation of tanks |
